LaserCom 3 NTSC - Laser Communication Set with Camera

LaserCom kit allows analog (audio/video) and digital transmission (direct data transfer from PC to PC) using a laser beam. This system provides an understanding of the basic principles of optical communication. LaserCom set allows simultaneous transmission of video and audio. All components are neatly housed in a compact plastic case. The transmitter has an adjustable power output ranging from 0.2 to 0.99 mW. The current value is shown on the display.

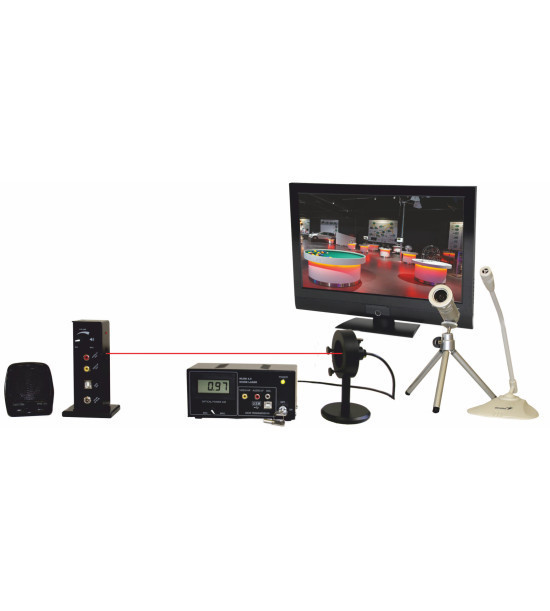

For video transfer, any video source can be connected to the laser transmitter (eg. CCD camera, video camera, video recorder) and any screen has to be connected to the receiver (TV or monitor is not included in the set).

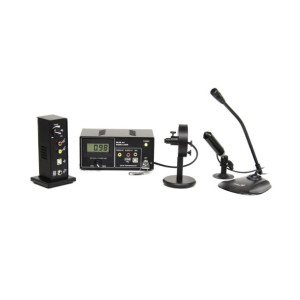

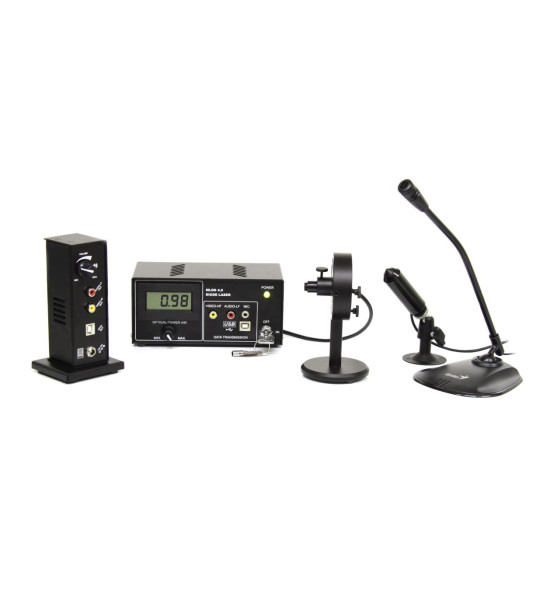

The kit consists of:

• adjustable laser transmitter
• laser receiver with speaker
• microphone
• color CCD camera
• manual
• adjustable holder
• power supplies (2 pieces)

Specification:

• power supply: 100-240V AC / 12V DC
• transmitter MLDD4.0
• Dimensions (LxWxH): 150 x 100 x 60 mm
• Laser (diode): Pmax<1mW
• Wavelength: 635 nm
• Laser class: Class 2
• DC: 12VDC / 500mA LF-audio /
• AUDIO-LF frequency: red CINCH / 100Hz-10kHz ; 500 mVpp
• VIDEO-HF frequency: yellow CINCH / <20MHz (NTSC) ; 1 Vpp
• MIC: 3,5 Jack / / 100Hz-10kHz
• USB: USB-A to USB-B v2.0 Hi-speed mode
• Receiver Dimensions ( LxWxH): 72 x 69 x 113 mm
• DC: 12VDC / 150mA LF-audio /
• AUDIO-LF impedance: red CINCH / 8 Ohm ; 500 mVpp
• VIDEO-HF impedance: yellow CINCH / 75 Ohm ; 1 Vpp
• USB: USB-A to USB-B v2.0 Hi-speed mode
