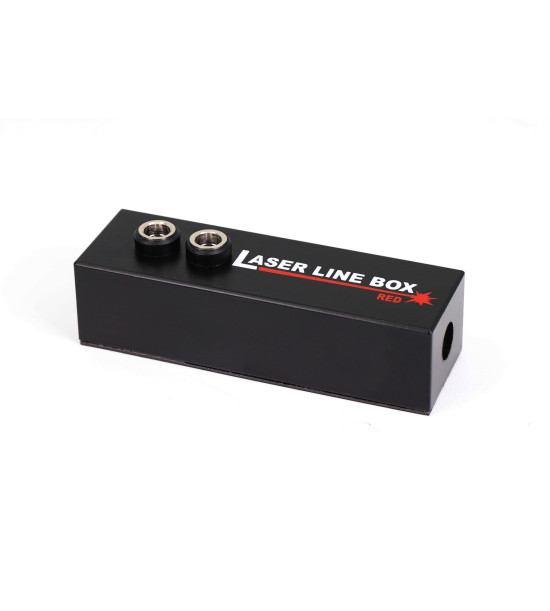

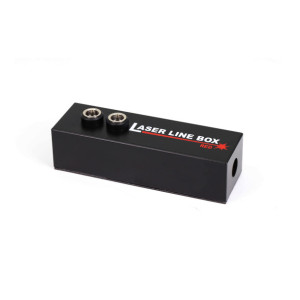

Red Laser Line Box w/o Power Supply

Red LLB is the updated version of Laser Line Box emitting the ray of a green color (wavelength 635 nm). The Line is visible even under extreme conditions; therefore the laser is very effective in the demonstration of light trace. In principle, very similar device to the Red Laser Ray Box, but it emits one green laser beam because it contains one independent laser module. The beam is stretched by cylindrical lens to a clearly visible light source. The device is taped with magnetized foil, allowing intuitive attachment to a magnetic board or use in conjunction with sheets and models from the Ray Optics Demonstration Set. It also effectively demonstrates the transmission of rays through a combination of optical elements. By attaching multiple Line Boxes, a multi-beam source can be created.

The set also includes a battery box (2x1,5V, AA size) and connecting cables for creating of multiray Line Box system. But the power supply is not included.

Specification:

• Laser type: Diode
• Wavelength: 635 nm
• Output Power/laser class: Pmax < 1 mW / 2
• Dimensions: 80 x 25 x 24 mm
• Power Supply requirements: 3V DC / 500 mA
