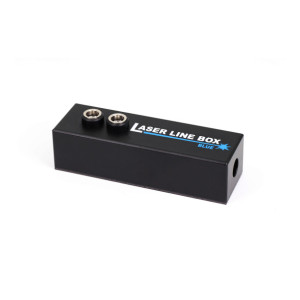

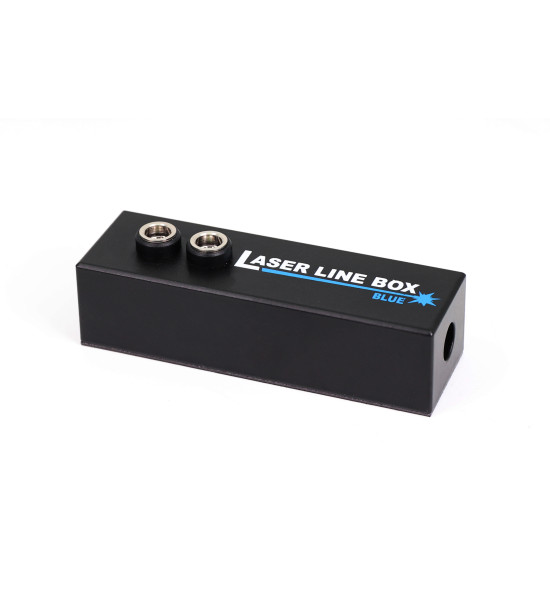

Blue Laser Line Box w/o Power Supply

21-0521

154,00 €

Blue Laser Line Box provides a clearly visible blue (450 nm) line light trace. It effectively demonstrates the transmission of rays through a combination of optical elements.elements.

More details

Blue LLB is the updated version of the Laser Line Box emitting the ray of a blue color (wavelength 450 nm). In principle, very similar device to the Blue Laser Ray Box, but it emits one blue laser beam because it contains one independent laser module. The beam is stretched by cylindrical lens to a clearly visible light source. It is taped with magnetized foil, allowing intuitive attachment to a magnetic board or use in conjunction with sheets and models from the Ray Optics Demonstration Set. It also effectively demonstrates the transmission of rays through a combination of optical elements. By attaching multiple Line Boxes, the multi-beam source can be created.

The set also includes a battery box (2x1,5V, AA size) and connecting cables for creating of multiray Line Box system. But the power supply is not included.

Specification:

  • Laser type: YVO4
  • Wavelength: 450 nm
  • Output Power/laser class: Pmax < 1 mW / 2
  • Dimensions: 80 x 25 x 24 mm
  • Power Supply requirements: 3V DC / 500 mA
